03 / SERVICE
CNC MACHINING
MILLING & TURNING
CNC milling and turning for demanding industrial components, from one-off parts to repeat production.
REQUEST A QUOTE
CNC turning
Prototype & series
Industrial tolerances
OUR EQUIPMENTTHE MACHINES
THE MACHINES
BEHIND YOUR PARTS.
Four milling centres. Two turning centres. A HAAS machine fleet for prismatic and rotational components.
VERTICAL MILLING3 MACHINES

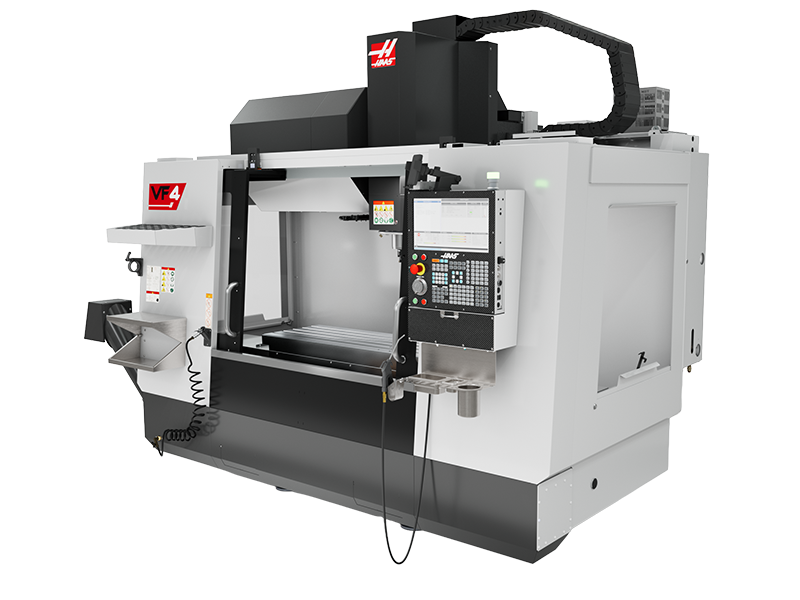

HAAS VF-4
Three VF-4 vertical machining centres provide capacity for milling, drilling, boring and tapping. Their three-axis layout suits plates, blocks, fixtures and prismatic components. Multiple machines let us schedule different parts alongside repeat batches, with tooling and workholding matched to each drawing.
- Installed quantity / year
- 3 units / 2022
- X × Y × Z axis travel
- 1,270 × 508 × 635 mm
- Machine type
- Vertical machining centre
Axis travel describes the machine movement envelope. Usable part size depends on fixtures, tools and access.
TYPICAL APPLICATIONS
- Machined plates and brackets
- Fixtures and tooling components
- Prismatic parts and production batches
HORIZONTAL MILLING1 MACHINE

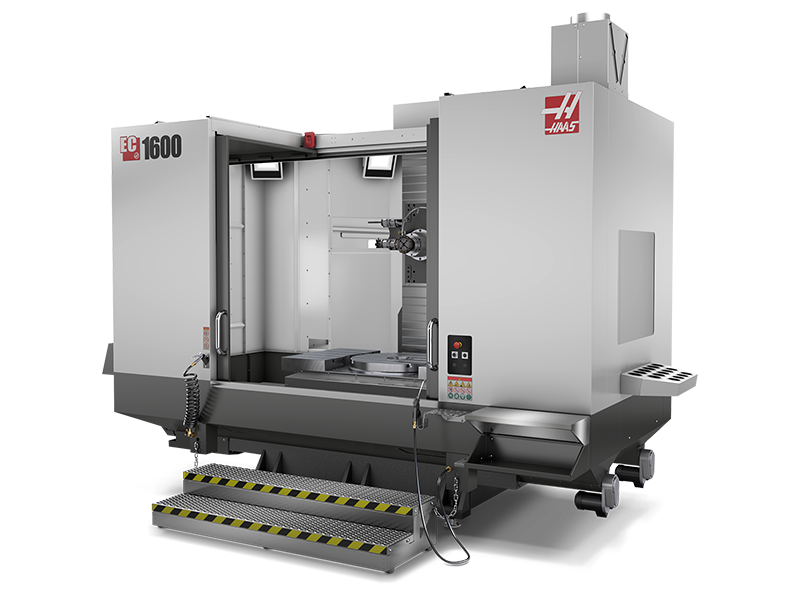

HAAS EC-1600
The EC-1600 expands our milling capacity to larger components. Its horizontal spindle and substantial working envelope suit housings, machine bodies and heavy industrial parts. Machining strategy and workholding are planned around the faces, bores and reference surfaces required by the drawing.
- Machine year
- 2025
- X × Y × Z axis travel
- 1,626 × 1,270 × 813 mm
- Machine type
- Horizontal machining centre
Axis travel describes the machine movement envelope. Usable part size and weight depend on the fixture and installed table configuration.
TYPICAL APPLICATIONS
- Machine housings and bodies
- Large blocks and structural components
- Bores and machined reference surfaces
CNC TURNING1 MACHINE

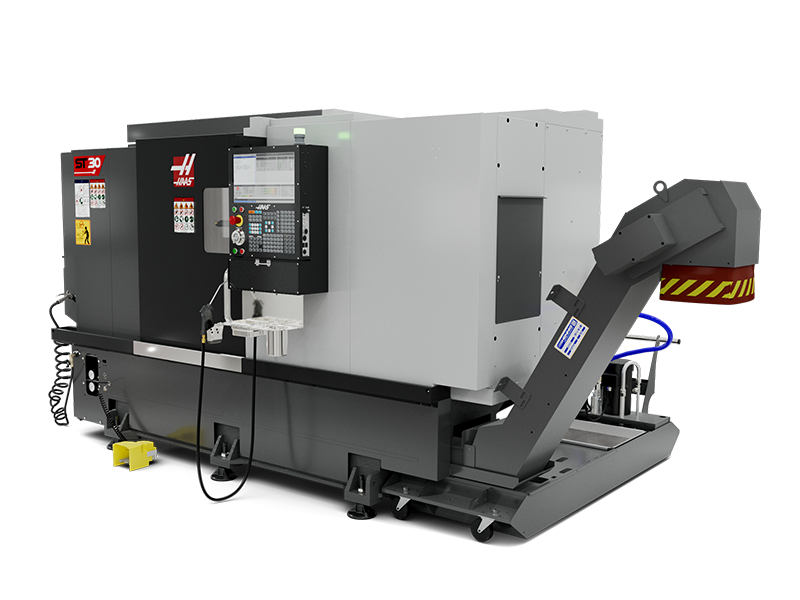

HAAS ST-30
Our ST-30 turning centre produces rotational parts such as shafts, bushes, sleeves and flanges. CNC turning combines facing, external profiling, internal boring and threading in a controlled sequence. The setup is selected for the stock form, clamping requirements and dimensional features of each component.
- Machine year
- 2025
- Max. cutting diameter (BOT)
- Ø381 mm
- Max. cutting length
- 826 mm
- Bar capacity
- Ø76 mm
Haas catalog dimensions: maximum cutting diameter is Ø381 mm with a BOT turret or Ø349 mm with BMT65. Cutting length varies with workholding; the installed turret and fixture define project capacity.
TYPICAL APPLICATIONS
- Shafts and stepped parts
- Bushes, sleeves and spacers
- Flanges and threaded components
CNC TURNING1 MACHINE

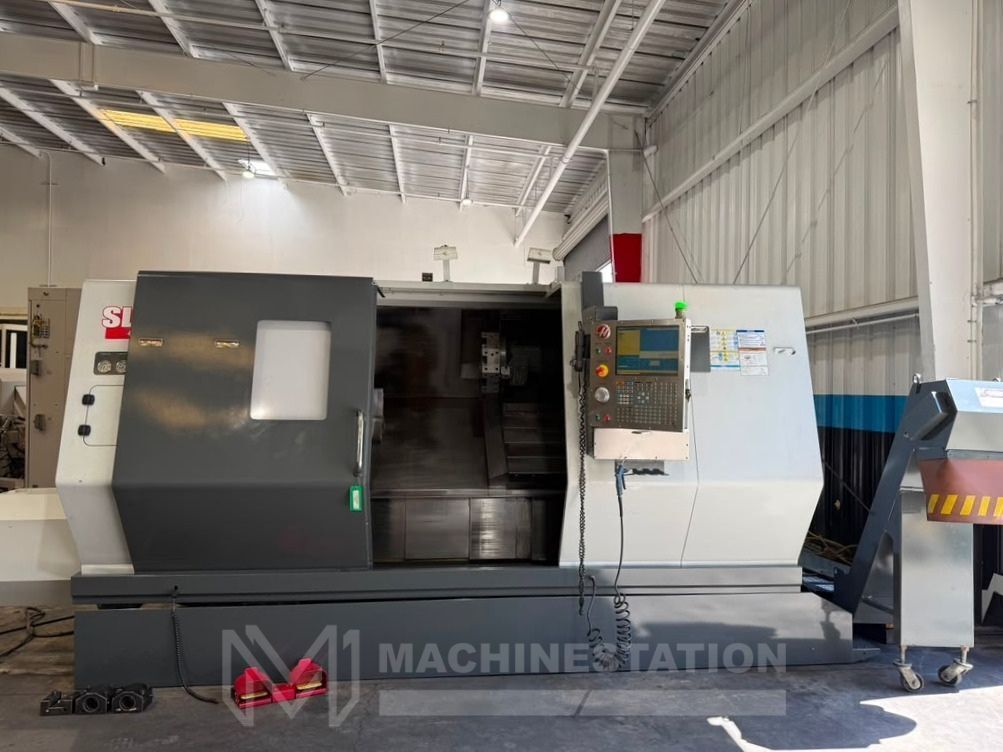

HAAS SL-40
The SL-40 complements the ST-30 for larger turning work. Its large-frame construction supports industrial components requiring substantial stock removal and secure workholding. We select the turning process around the part diameter, length, material and features that must remain concentric.
- Machine year
- 2008
- Max. cutting diameter
- Ø648 mm
- Max. cutting length
- 1,118 mm
- Bar capacity
- Ø102 mm
Haas SL-series catalog capacity with BOT turret: Ø648 mm × 1,118 mm; standard workholding reduces cutting length to 1,080 mm. Usable dimensions depend on tooling and fixtures.
TYPICAL APPLICATIONS
- Larger shafts and sleeves
- Flanges and rings
- Heavy industrial turned parts
Manufacturing limits are assessed from your drawing. Material, thickness, tooling, joint geometry and workholding determine the achievable dimensions and finish.
